Shower Dimensions & Sizes

Learn more about the dimensions and details of each component to assemble your perfect shower enclosure. No matter the size or shape of your space, LuxStone®’s flexible design options allow you to build your dream shower.

Call today to schedule your free consultation.

Request a free consultation

or call to speak with a KOHLER Authorized Dealer (800) 484-9738
  • What size shower/bath area do LuxStone products fit?
    The LuxStone shower is designed to fit in a wide variety of spaces. Our durable, textured shower base is available in several sizes, shapes and drain locations to easily lay the foundation for your custom shower. During your in-home or virtual design consultation, your KOHLER Authorized Dealer will measure your shower space to ensure that LuxStone is the right fit for your desired location.
  • How low is the shower entry?
    The shower base provides the reassurance of a low step-over threshold for easy access to your shower. Each shower base is available in a variety of shapes and sizes and is designed with a 3-inch threshold to keep the water inside the shower.
  • Can LuxStone shower walls be customized to fit my unique shower space?
    Yes. LuxStone shower walls were designed for low-maintenance cleaning and excellent durability. Each wall is designed to be custom-fitted on-site so they perfectly fit your shower space. Once you are satisfied with the look of your new shower, our KOHLER Authorized Dealers are able to install it in as little as one day, so you can start enjoying your new shower soon after.

Shower Walls

Shower Wall Dimensions | KOHLER® LuxStone Shower

Single Wall Panels: Available Sizes

  • W 36" x H 96"
  • W 48" x H 96"
  • W 60" x H 72"
  • W 60" x H 96"

Wall Kits:

L 60" x W 36" x H 96"

  • One W 60" x H 96" Back Wall
  • Two W 36" x H 96" End Walls
  • Two Color-Matched Corner Joints

L 60" x W 36" x H 72"

  • One W 60" x H 72" Back Wall
  • Two W 36" x H 96" End Walls
  • Two W 36" x H 72" End Walls
View Color Options »

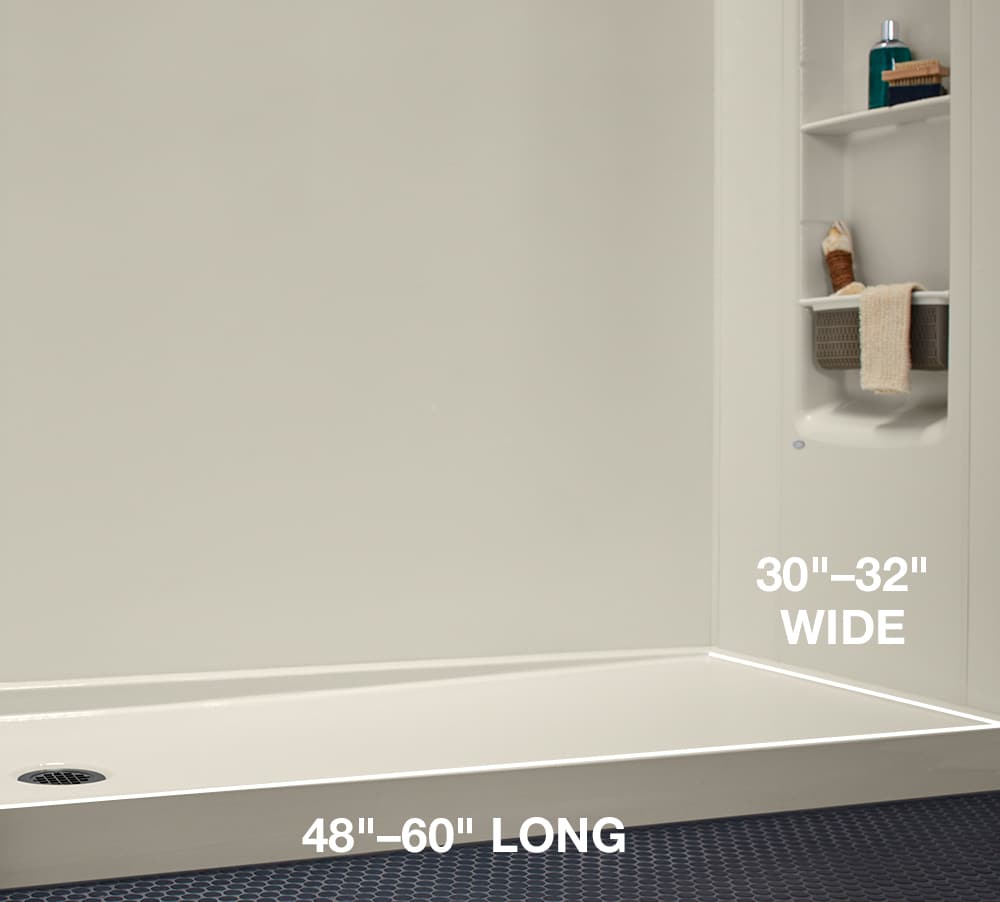

Shower Bases

Shower Base Dimensions | KOHLER® LuxStone Shower

Left-Hand or Right-Hand Drain: Available Sizes

  • L 48" x W 32"
  • L 60" x W 30"
  • L 60" x W 32"

Center Drain: Available Sizes

  • L 60" x W 42"
  • L 60" x W 34"
  • L 48" x W 42"
  • L 48" x W 34"
  • L 42" x W 42"
  • L 42" x W 34"
  • L 36" x W 42"
  • L 36" x W 36"
  • L 36" x W 34"

Tresham® Shower Base With Integral Seat Available Sizes

  • L 60" x W 36"
  • L 60" x W 32"
Explore Shower Bases »
Showerheads

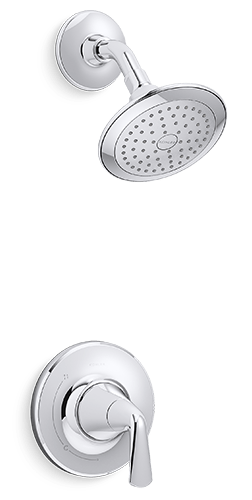

  • Modern Showerhead | KOHLER® LuxStone Shower

    Modern

    • Includes faceplate with handle, shower arm with flange and showerhead.
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Single lever handle controls both on/off activation and temperature setting.
    • Features MasterClean sprayface for easy cleaning.
    • Matching handshower available
    • 3 spray options: powerful massage, intense drenching or wide coverage
    • Available in Polished Chrome and Vibrant® Brushed Nickel

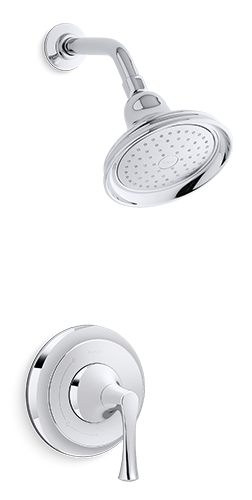

  • Traditional Showerhead | KOHLER® LuxStone Shower

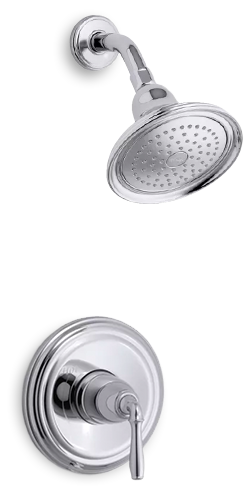

    Traditional

    • Includes faceplate with handle, shower arm with flange and showerhead.
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Single lever handle controls both on/off activation and temperature setting.
    • Features MasterClean sprayface for easy cleaning.
    • Matching handshower available
    • 3 spray options: powerful massage, intense drenching or wide coverage
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Oil-Rubbed Bronze

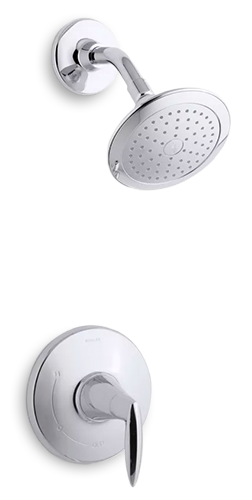

  • Contemporary Showerhead | KOHLER® LuxStone Shower

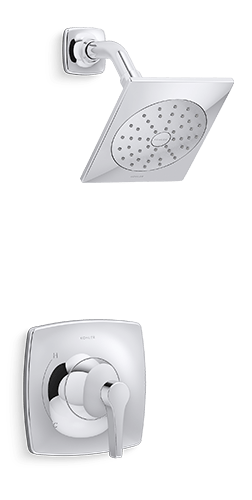

    Contemporary

    • Includes faceplate with handle, shower arm with flange and showerhead.
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Single lever handle controls both on/off activation and temperature setting.
    • Features MasterClean sprayface for easy cleaning.
    • Matching handshower available
    • 3 spray options: powerful massage, intense drenching or wide coverage
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Matte Black
  • Alteo Showerhead and Handle | KOHLER® LuxStone Showerheads

    Alteo®

    • Includes faceplate with handle, shower arm with flange and showerhead.
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Single lever handle controls both on/off activation and temperature setting.
    • ADA-compliant metal lever handle.
    • Features MasterClean sprayface for easy cleaning.
    • L 6-⅜", H 6-716", W 6-716"
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Oil-Rubbed Bronze
  • Devonshire Shower Head | KOHLER® LuxStone Showerhead

    Devonshire®

    • Includes face plate with handle, shower arm with flange and showerhead.
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Single lever handle controls both on/off activation and temperature setting.
    • ADA-compliant metal lever handle.
    • Features MasterClean sprayface for easy cleaning.
    • L 5-58", H 7", W 7"
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Oil-Rubbed Bronze
  • Modern Showerhead | KOHLER® LuxStone Shower

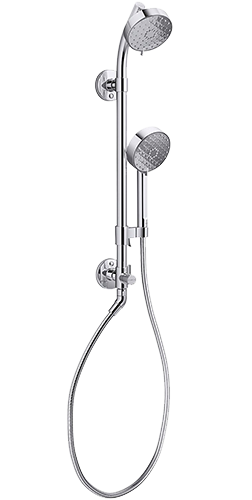

    HydroRail®-S Shower Column Kit With Awaken®

    • Includes Awaken showerhead and handshower with a HydroRail-S shower column and 60" ribbon hose.
    • Three distinct sprays: wide coverage, intense drenching and targeted spray.
    • Slidebar bracket allows you to adjust height and angle of handshower.
    • MasterClean sprayface is easy to clean.
    • L 6-¼", H 25-38", W 3-516"
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Matte Black
  • Modern Showerhead | KOHLER® LuxStone Shower

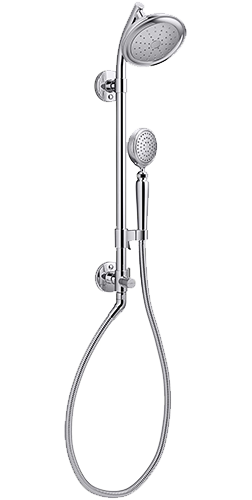

    HydroRail®-S Shower Column Kit With Artifacts®

    • Includes Artifacts showerhead and handshower with a HydroRail-S shower column and 60" ribbon hose.
    • Slidebar bracket allows you to adjust height and angle of handshower.
    • Diverter at column base makes for easy toggling between handshower and showerhead.
    • MasterClean sprayface is easy to clean.
    • L 6-¼", H 25-38", W 3-516"
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Oil-Rubbed Bronze

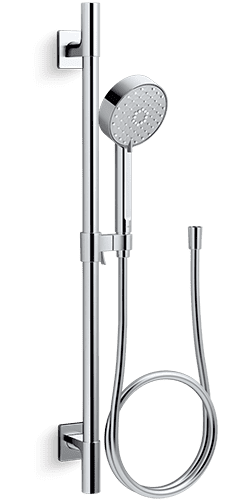

  • Handheld Showerhead | AWAKEN® Showerhead by KOHLER

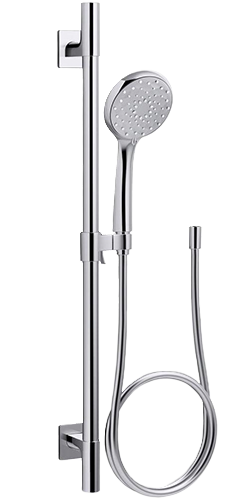

    Awaken® Handshower Kit

    • Includes Awaken® B110 multifunction handshower, 24" slidebar and 60" smooth hose.
    • Three distinct sprays: wide coverage, intense drenching and targeted massage
    • Meets ADA requirement for nonpositive shutoff.
    • MasterClean sprayface is easy to clean.
    • L 3-⅛", H 29-58", W 2-1516"
    • Available in Polished Chrome, Vibrant® Brushed Nickel and Oil-Rubbed Bronze
  • Rainhead Showerhead | KOHLER® LuxStone Showerheads

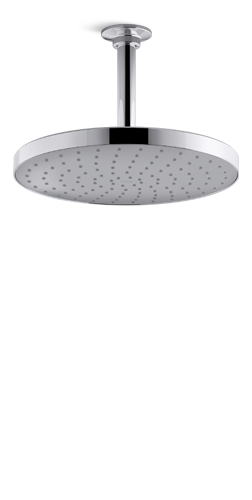

    Rainhead

    • Angled nozzles generate a uniform spray pattern with wide, even coverage
    • Installed on a wall- or ceiling-mount showerarm
    • Adjustable swivel ball joint allows for precise spray adjustment
    • Features MasterClean sprayface is easy to clean
    • 10" dia.
    • Available in Polished Chrome, Vibrant® Brushed Nickel, Oil-Rubbed Bronze and Matte Black

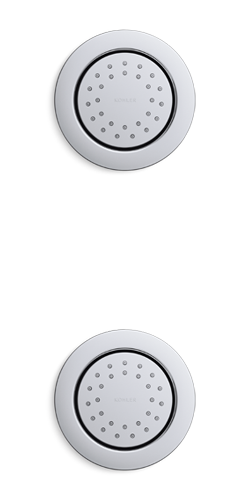

  • Bodysprays | KOHLER® LuxStone Showerheads

    Body Spray

    • 27 nozzles
    • Features Katalyst® air-induction spray, delivering a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
    • Features MasterClean sprayface is easy to clean
    • 4 78" diameter
    • Available in Polished Chrome, Vibrant® Brushed Nickel, Oil-Rubbed Bronze and Matte Black

View All Finish Options »

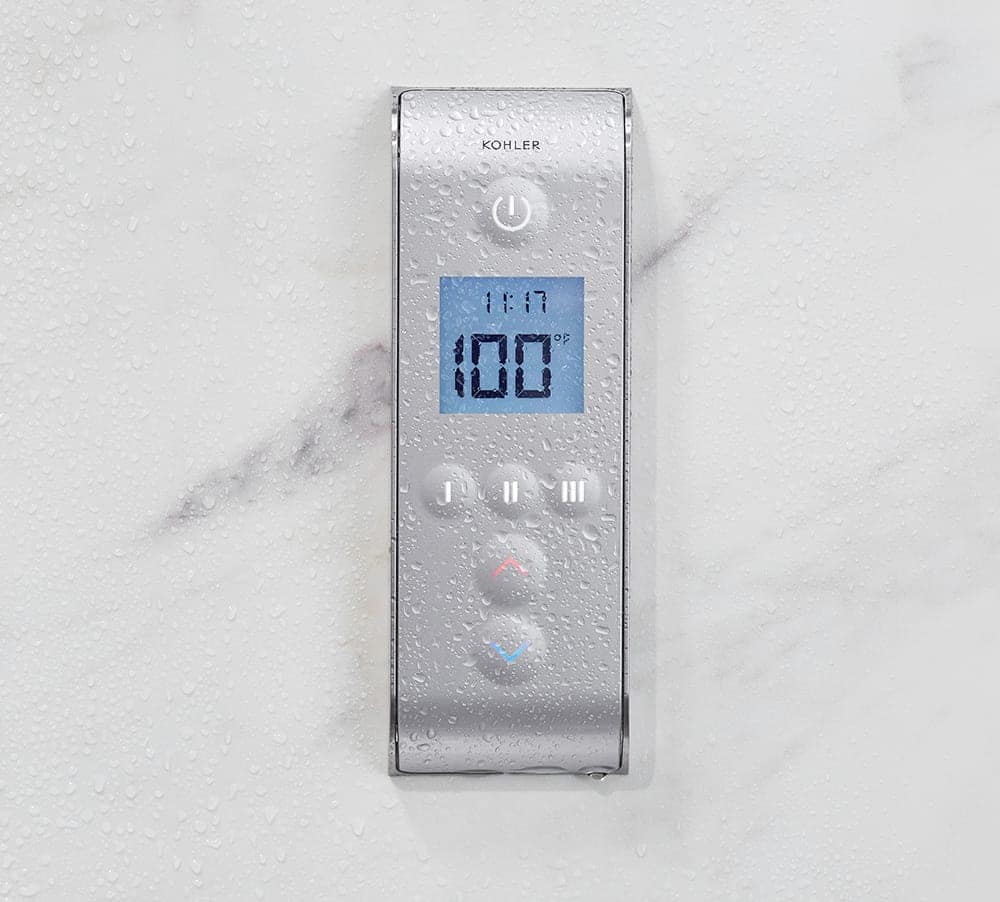

DTV Prompt®

DTV Prompt | Digital Showering | KOHLER® LuxStone Shower

Available Sizes

  • Three-outlet digital interface
  • L 7 34" x W 2 1116" x D 34"
  • LCD display shows time and temperature in Fahrenheit or Celcius
  • Set precise and safe temperature control
  • Selectable water-saving functionality
  • Independent control of up to three outlets
  • Suitable for multi-outlet shower or bath/shower applications
  • Available in Satin Chrome and Black
View DTV »

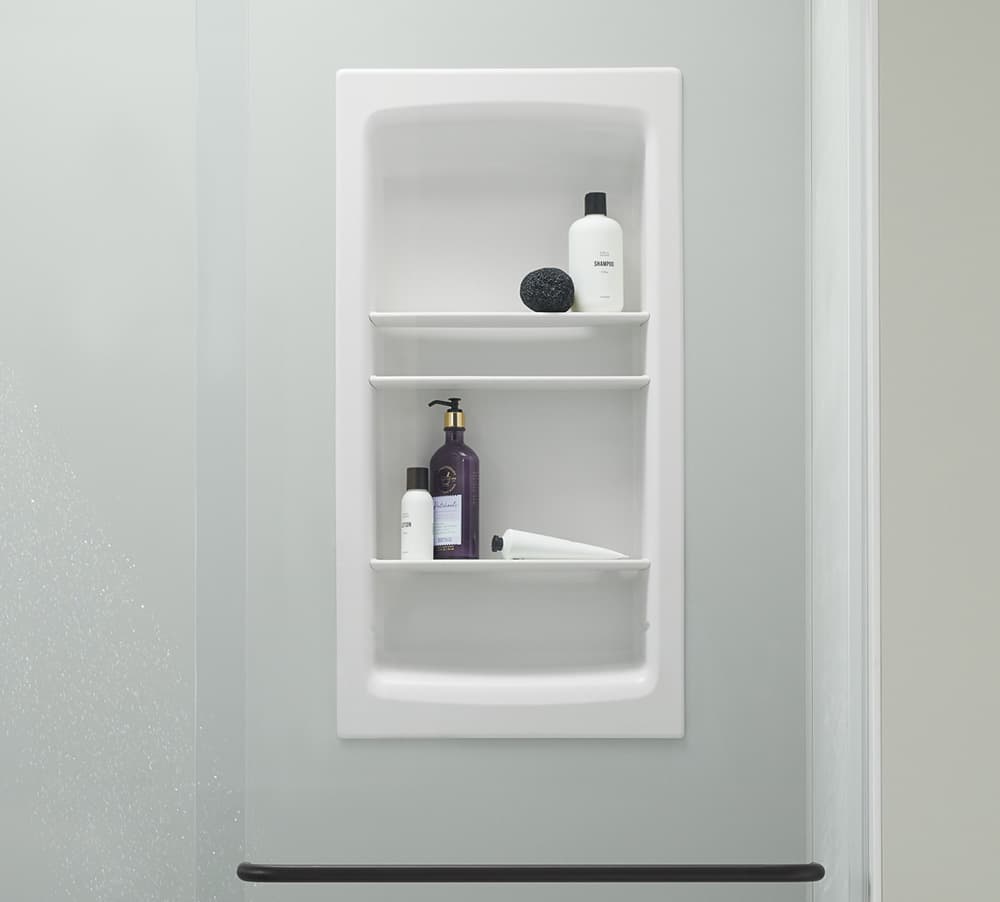

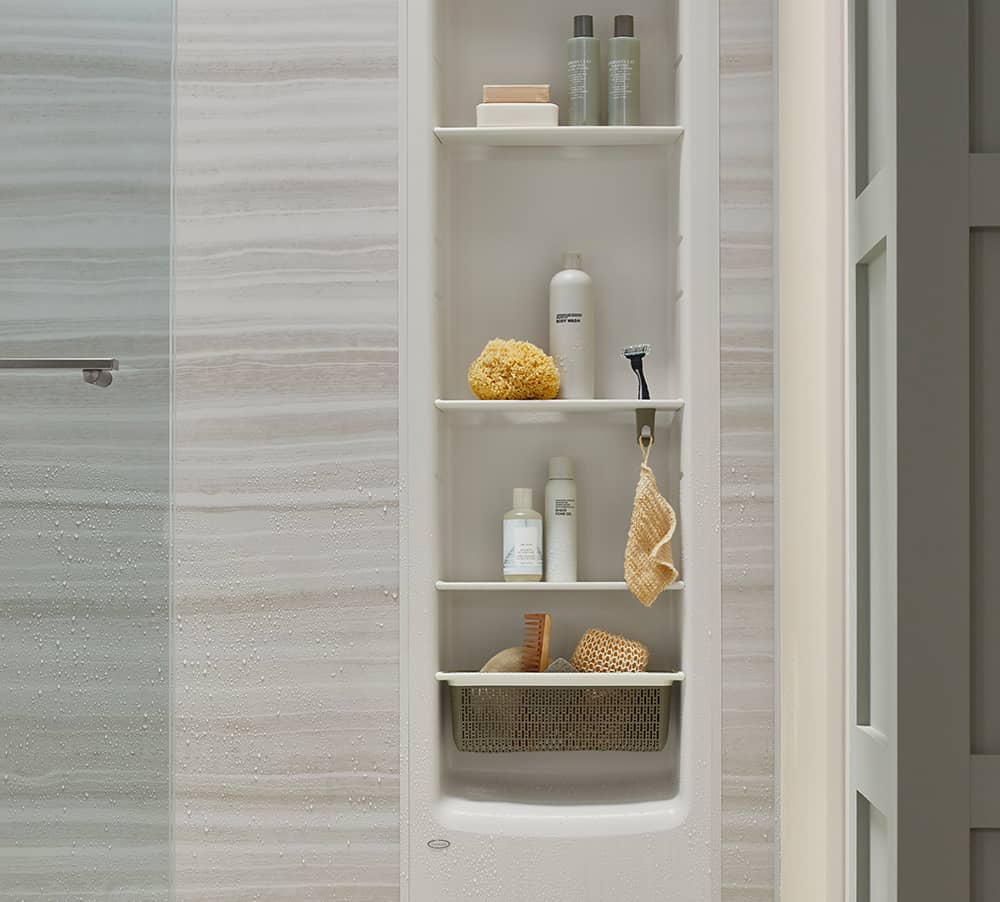

Recessed Shelf

Shower Shelving | Shower Storage | KOHLER® LuxStone Shower

Available Sizes

  • L 316", H 95-516", W 10-78"
  • L 316", H 95-516", W 16-1316"
  • Includes four movable shelves, one integral hook, one cup, one rubber basket and integral foot ledge.
View Color Options »

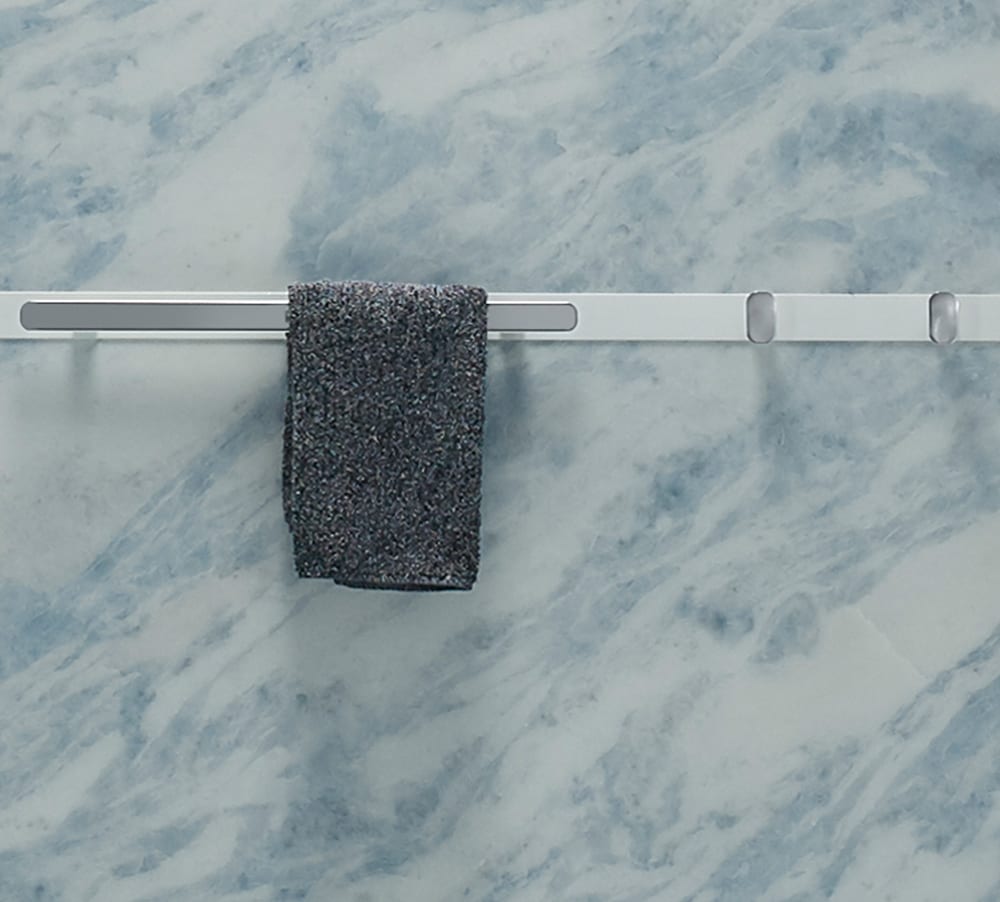

Towel Bar

Towel Bar | Shower Storage | KOHLER® LuxStone Shower

Available Sizes

  • L 16"
View Finish Options »

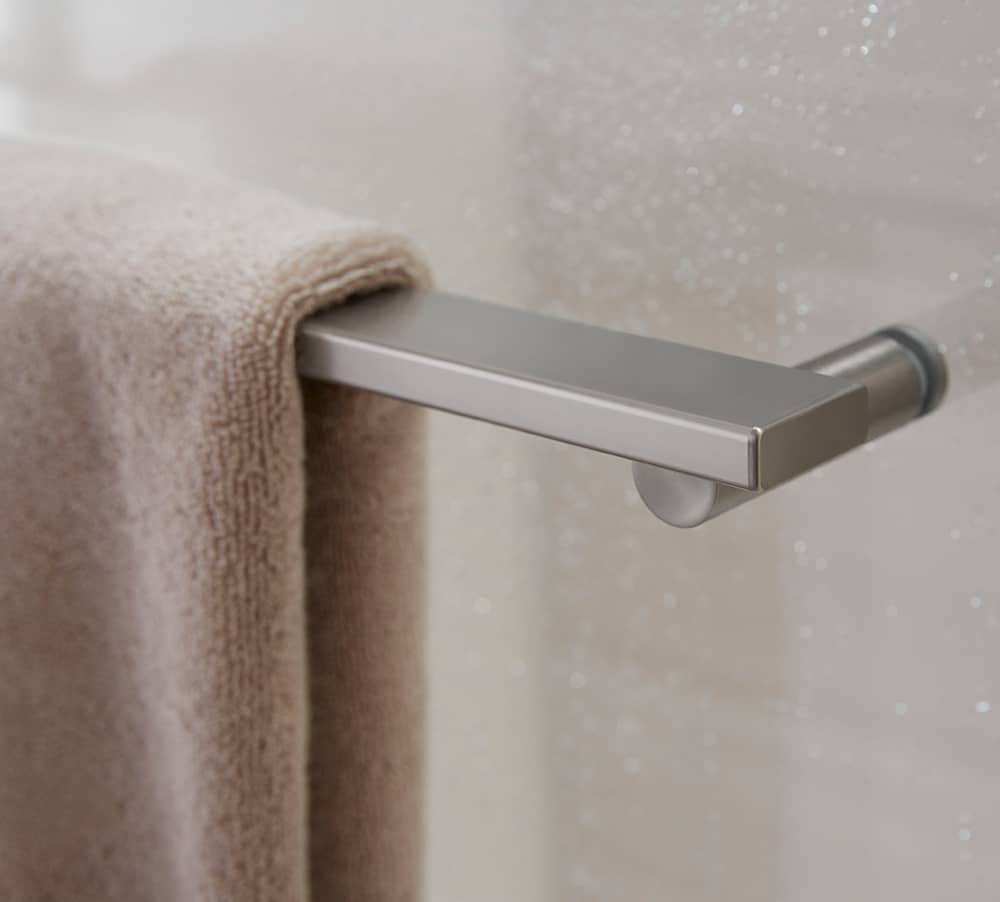

Shower Barre

Shower Barre Dimensions | KOHLER® LuxStone Shower

Available Sizes

  • L 24"
  • L 36"
  • L 54"
View Finish Options »

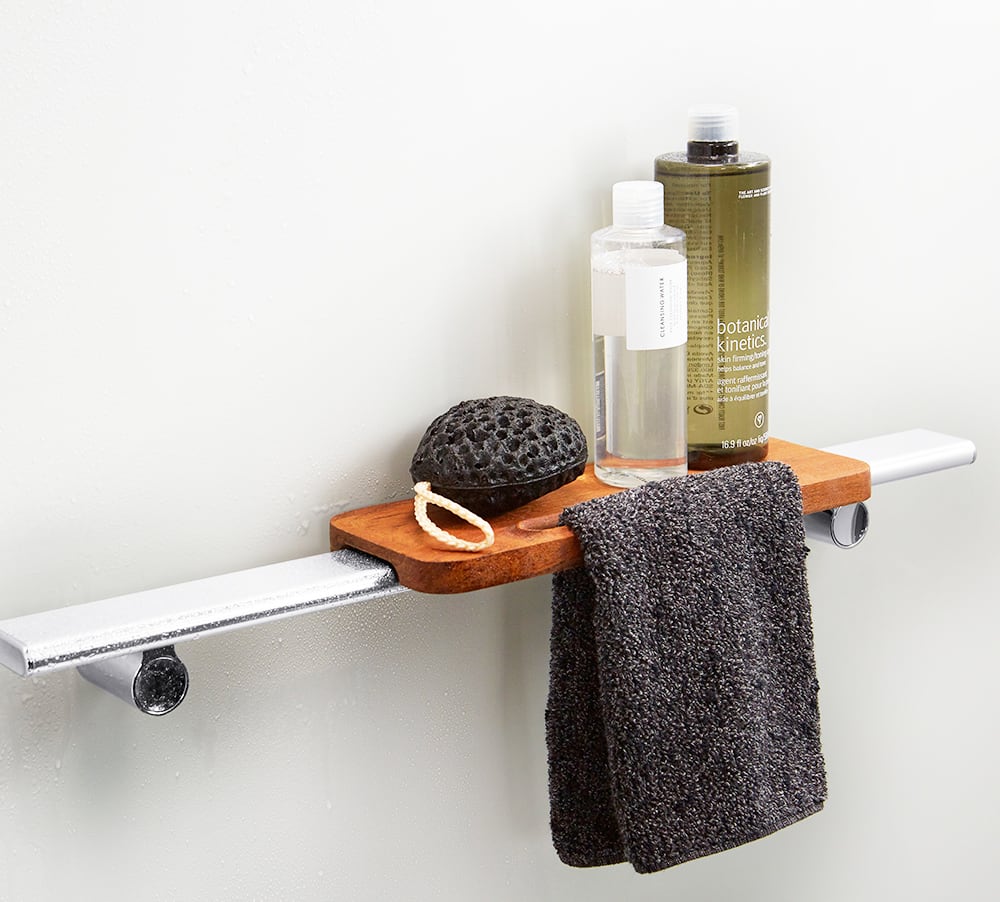

Teak Tray

Shower Barre Dimensions | KOHLER® LuxStone Shower

Available Sizes

  • L 12" x W 4-58" x D 1-18"
Explore Teak Tray »

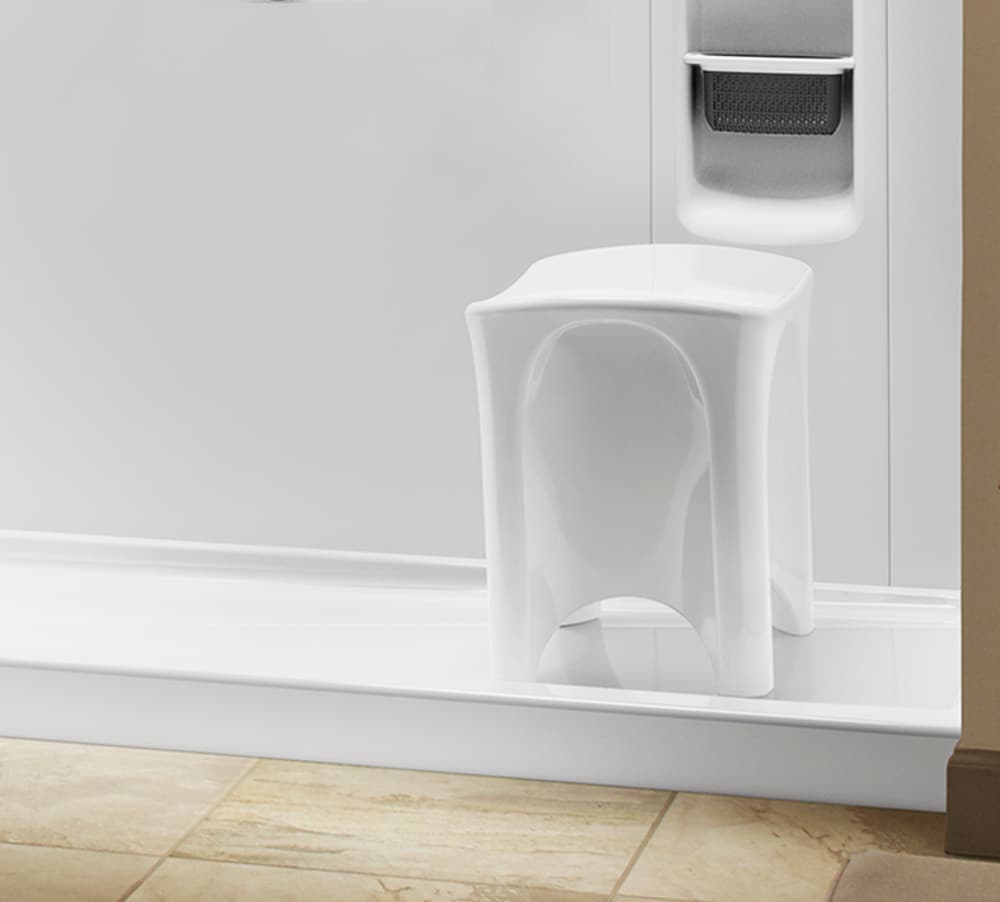

Shower Seat

Shower Seat Dimensions | KOHLER® LuxStone Shower

Available Sizes

21-78" x 17-38" x 13-18"

Explore Shower Seat »

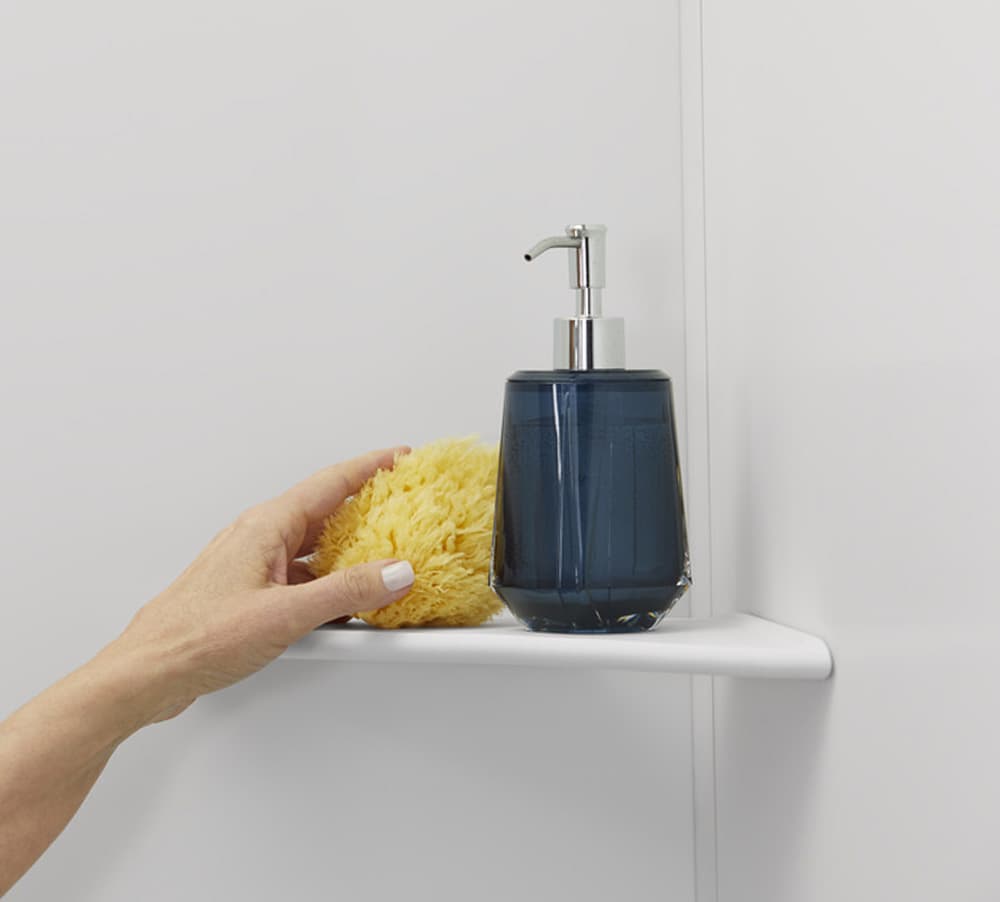

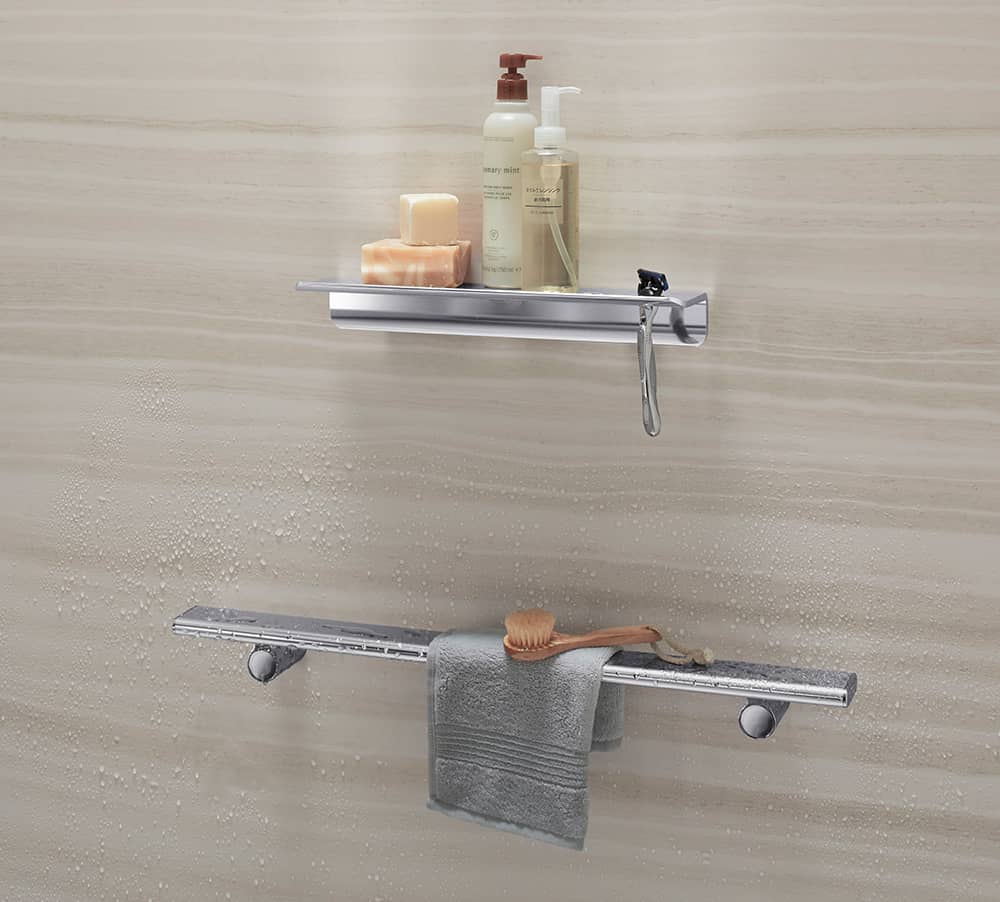

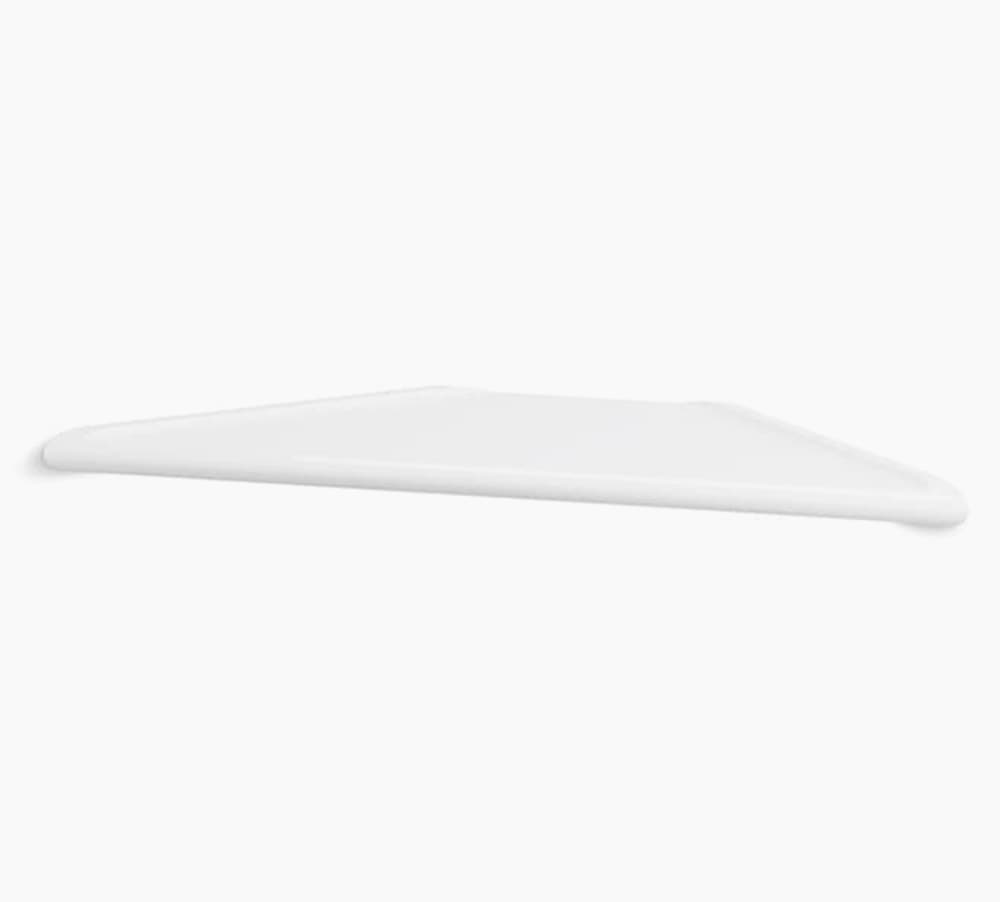

Floating Shelf

Shower Shelves | KOHLER® LuxStone Shower

Available Sizes

  • L 14" - With integral holes for hanging razors
  • L 21" - With integral slot for hanging small towels
View Finish Options »

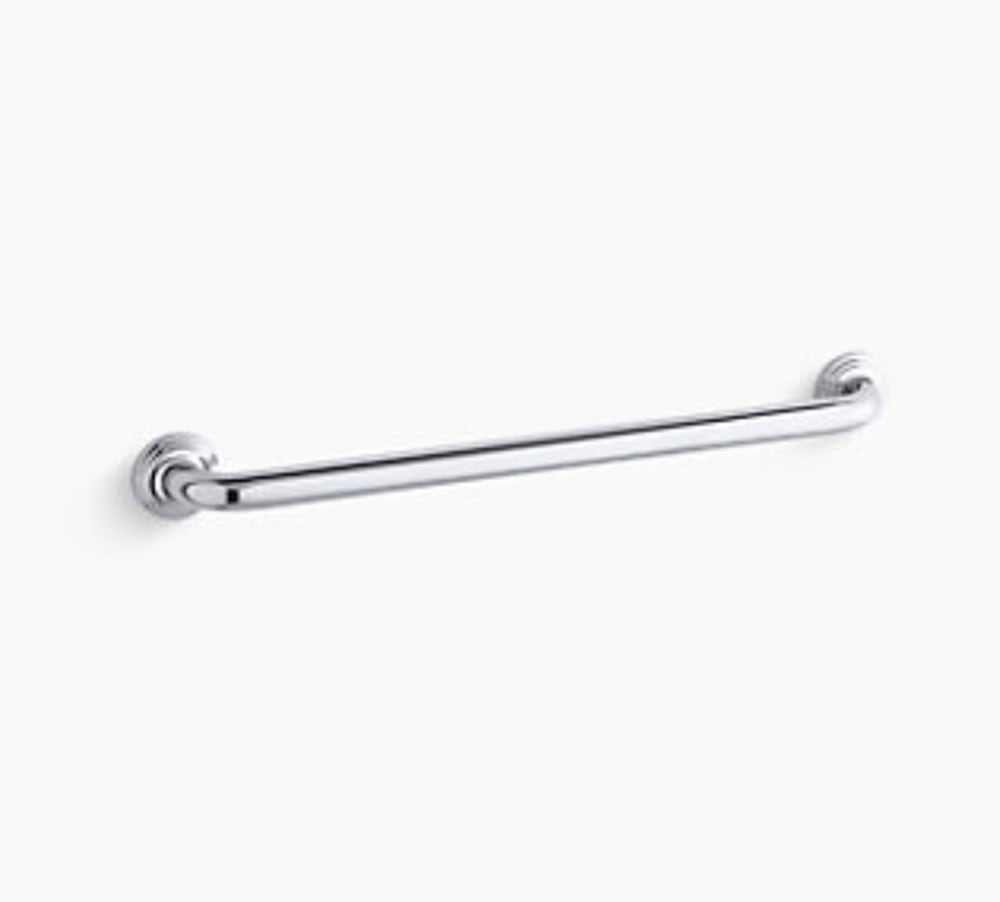

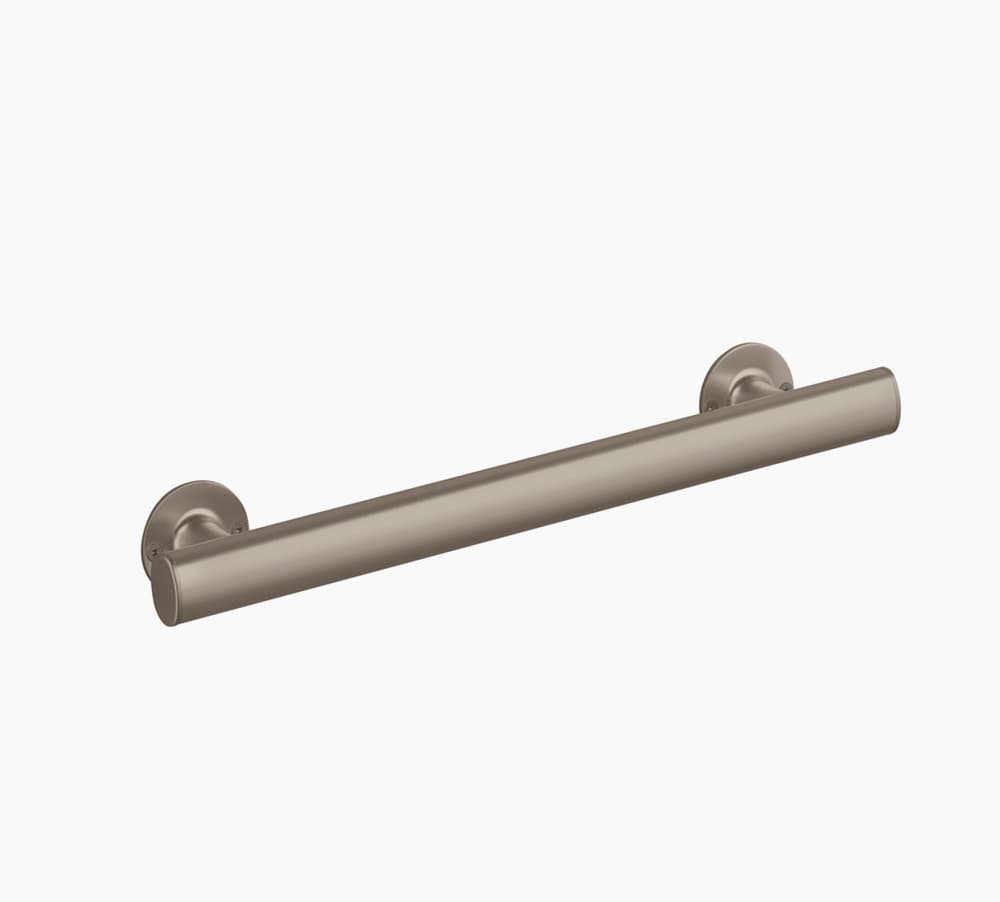

Grab Bars

Shower Shelving | Shower Storage | KOHLER® LuxStone Shower

Available Sizes

  • L 18"
  • L 24"
  • L 36"
View Finish Options »

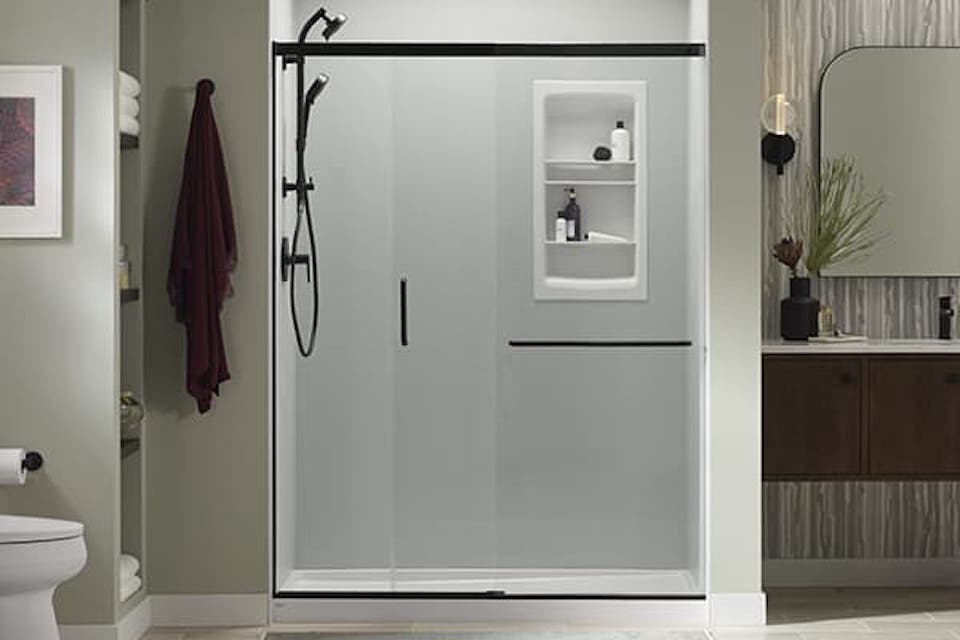

Glass Doors

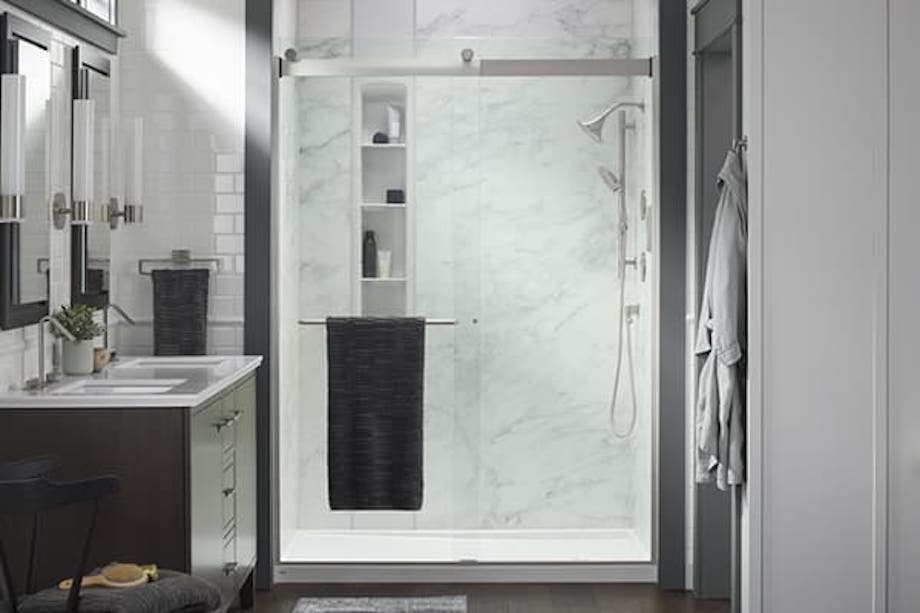

  • LuxStone Sliding Barn Door | KOHLER® LuxStone Shower

    LuxStone Sliding Barn Door

    NEW
    • Frameless design
    • 516"-thick Crystal Clear tempered glass
    • Gently curved towel bar and knob handle
    • Available in: 82" H x 60" W, 82" H x 48" W, 78" H x 60" W, 78" H x 48" W

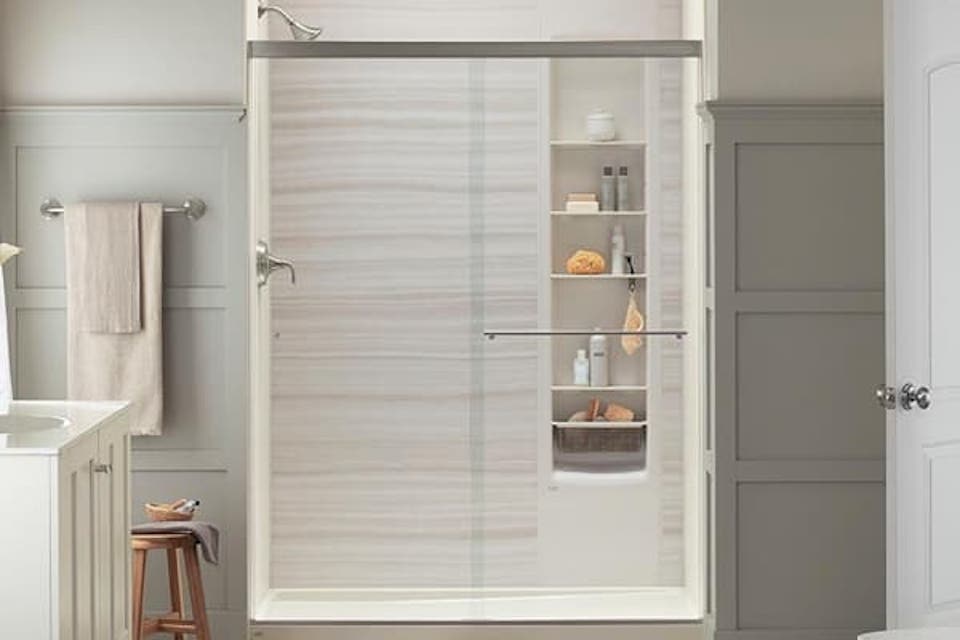

  • Shower with a Glass Door and Shelves | KOHLER® LuxStone Shower

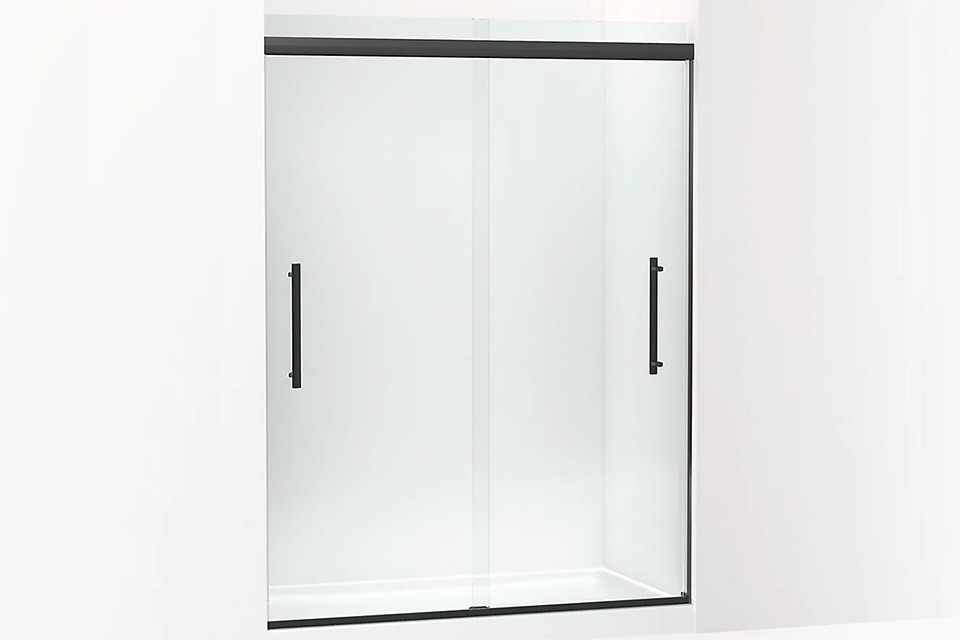

    78" H Sliding Shower Door

    • Frameless design
    • 516"-thick Crystal Clear tempered glass
    • Vertical blade handles
    • Available in: 78" H x 60" W, 78" H x 48" W
  • Shower Redesign | KOHLER® LuxStone Shower

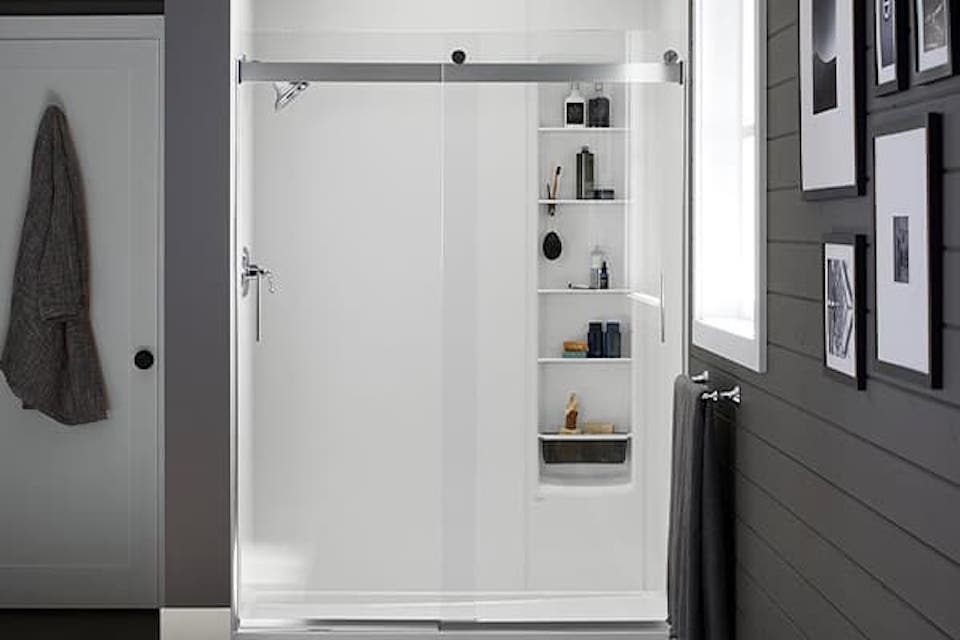

    76" H Sliding Shower Door

    • Frameless design
    • 516"-thick Crystal Clear tempered glass
    • Towel bar and knob handle
    • Available in: 76" H x 60" W, 76" H x 48" W
  • Glass Shower Door | Shower Enclosure | KOHLER® LuxStone Shower

    74" H Pivot Shower Door

    • Frameless design
    • 516"-thick Crystal Clear tempered glass
    • Vertical handle
    • Available in: 74" H x 48" W, 74" H x 36" W

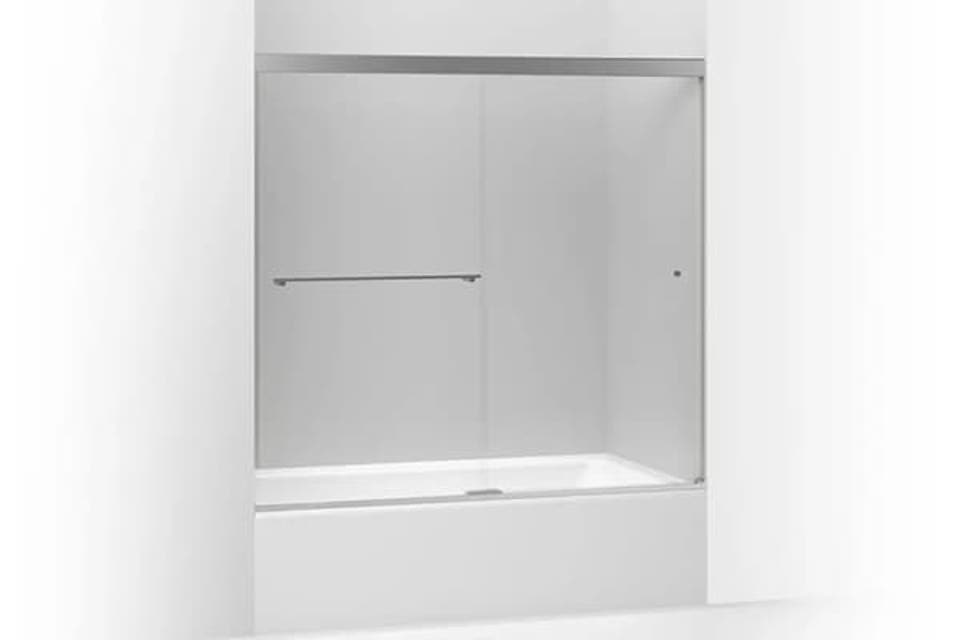

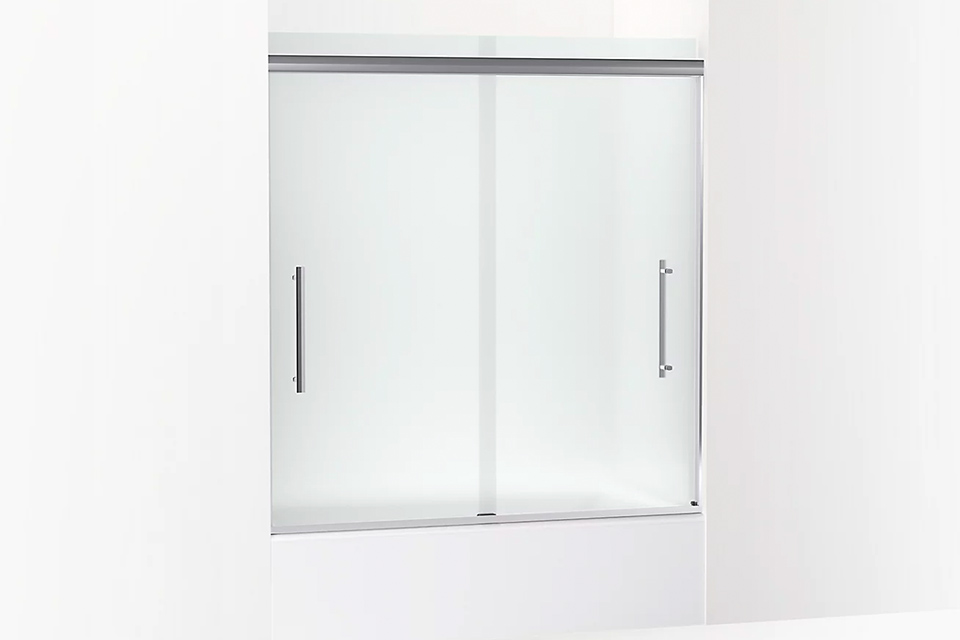

  • Glass Shower Door | KOHLER® LuxStone Shower

    62" H Sliding Bath Door

    NEW
    • Frameless design
    • 516"-thick tempered glass
    • Towel bar and knob handle
    • 62" H x 60" W

View Finish Options »

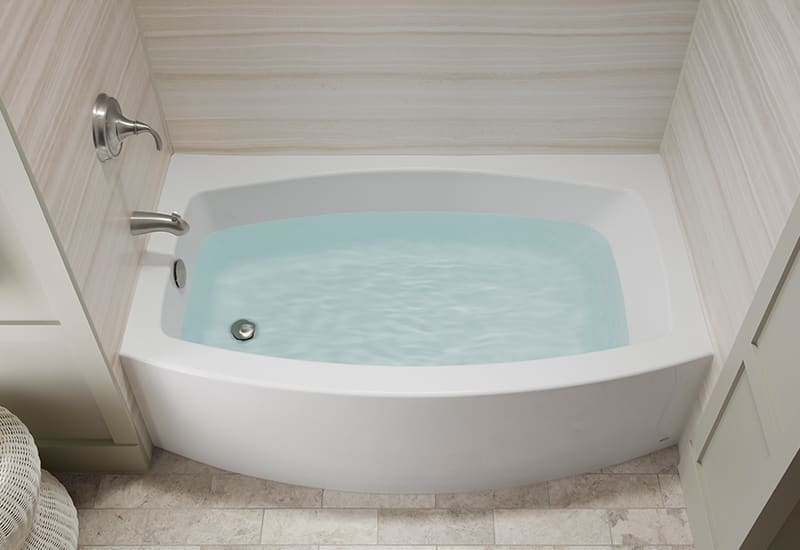

Expanse Alcove Bath

Expanse Alcove Bath | KOHLER® LuxStone Shower

Specifications

  • Left- or right-facing drain
  • 60" x 30"
  • Textured bottom surface
  • Available in White or Biscuit
  • Curved basin with integral apron

Archer Alcove Bath

Archer Alcove Bath | KOHLER® LuxStone Shower

Specifications

  • Left- or right-facing drain
  • Available in 60" x 32" and 60" x 30"
  • Textured bottom surface
  • Available in White or Biscuit
  • Comfort Depth® design offers a 19-inch step-over height while retaining the same depth as a standard 21-inch bath
  • Molded lumbar support offers extra comfort while bathing
Put it all together
Now that you know all of your options, explore our gallery to see how the pieces fit together in a cohesive shower space. View Gallery
